Integrated Sand and Powder Raymond Grinding Mill

Introduction to the Integrated Sand and Powder Raymond Grinding Mill

The sand and powder integrated Raymond Grinding Mill is a high - efficiency sand - powder integrated equipment developed on the basis of the traditional Raymond Grinding Mill through structural improvement and function integration. It not only inherits the high - efficiency powder - making ability of the traditional Raymond Grinding Mill, but also realizes the synchronous production of sand and powder. It can process raw materials such as limestone, granite, and slag into sand and powder with different fineness.

Capacity：10-40t/h

Fineness：80-400mesh

Application Areas:The sand and powder integrated Raymond Grinding Mill demonstrates excellent processing performance in multiple fields. In the construction industry, it can produce construction sand with uniform particle size and regular shape, significantly improving the performance of concrete. At the same time, it can produce various powders to meet different needs. In cement production, it can efficiently grind raw materials and clinkers, improving the quality and output of cement. When applied to power plant desulfurization, it can precisely control the particle size of limestone powder, greatly improving the desulfurization efficiency and reducing pollutant emissions. In the field of non-metallic mineral processing, it can process raw materials such as calcium carbonate to produce industrial powders of different specifications.

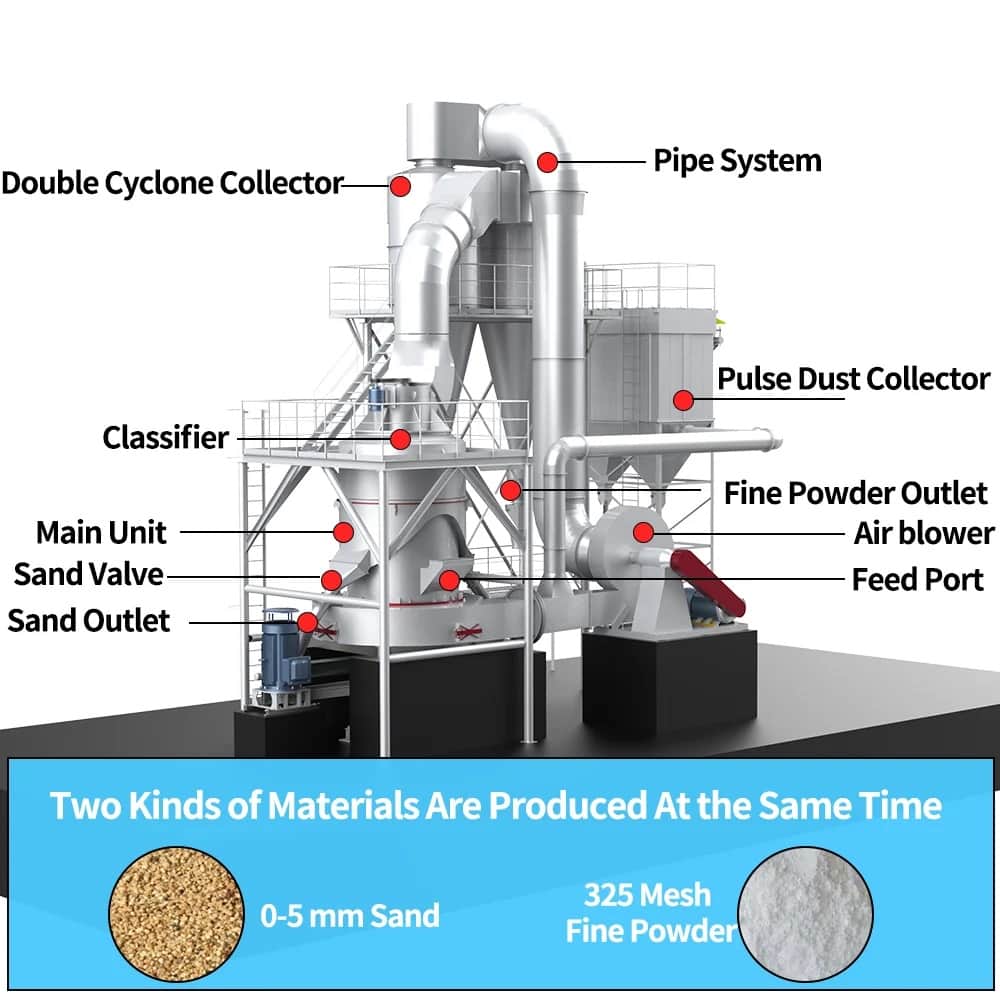

Features of the sand and powder integrated Raymond Grinding Mill

1. Integrated Design: Integrating sand and powder production functions into a single machine reduces the footprint of the equipment, simplifies the production process, and lowers investment costs.

2. Optimized Classification System: Utilizing advanced classification technology, it can simultaneously produce sand and powder with different particle sizes, meeting diverse market demands.

3. High Efficiency and Energy Saving: By optimizing the transmission system and grinding structure, energy consumption is reduced while production efficiency is improved.

4. High-Performance Production: The sand-powder integrated Raymond Grinding Mill enables simultaneous production of sand and powder, significantly enhancing production efficiency while reducing equipment investment and operational costs.

5. High Resource Utilization: Through integrated design, raw materials are fully utilized, minimizing resource waste.

6. Strong Adaptability: The finished products feature uniform particle size and high screening efficiency, meeting the stringent requirements of various industries. It is suitable for processing a wide range of non-metallic minerals, such as limestone, barite, and calcite, with broad application scope.

7. Intelligent Control: Equipped with an intelligent control system, it achieves automated operation, reduces human intervention, and improves production stability. The advanced automated control system employs centralized control, enabling real-time monitoring of equipment parameters, automatic alarms, and prompts for troubleshooting.

8. Environmentally Friendly: Fitted with a pulse dust collector and a sealed structure, it reduces dust emissions, achieving a win-win balance between economic and environmental benefits.

Sand and powder integrated Raymond Grinding Mill technical parameters

The sand and powder integrated Raymond Grinding Mill performs exceptionally well in practical applications, with a comprehensive output ranging from 10 to 40 tons per hour. Its specific performance is as follows:

Sand Production: The output of fine sand with a mesh size of 8-120 remains stable at 27 tons per hour, featuring uniform particle size and consistent quality, making it suitable for construction, building materials, and other fields.

Fine Sand Production: The output of fine sand with a mesh size of 20-120 can reach 20 tons per hour, making it suitable for high-end building materials, foundry industries, and other applications.

Powder Production: During the sand production process, powder material with a mesh size of 10-15, suitable for putty powder, can also be produced simultaneously. The output is stable, and the quality is excellent.

Different models of sand and powder integrated Raymond Grinding Mills meet various production needs：

3R Series: Suitable for small businesses, compact in size, easy to install and operate, with a production capacity of 1 to 3 tons per hour, and adjustable finished particle size ranging from 80 to 325 mesh.

4R Series: Widely applicable, with a production capacity of 3 to 8 tons per hour, and adjustable finished particle size ranging from 80 to 400 mesh.

5R Series: Suitable for large enterprises, with strong production capabilities, a production capacity of 8 to 22 tons per hour, adjustable finished particle size ranging from 80 to 400 mesh, and also capable of producing coarse powder with a particle size of 30 to 80 mesh.

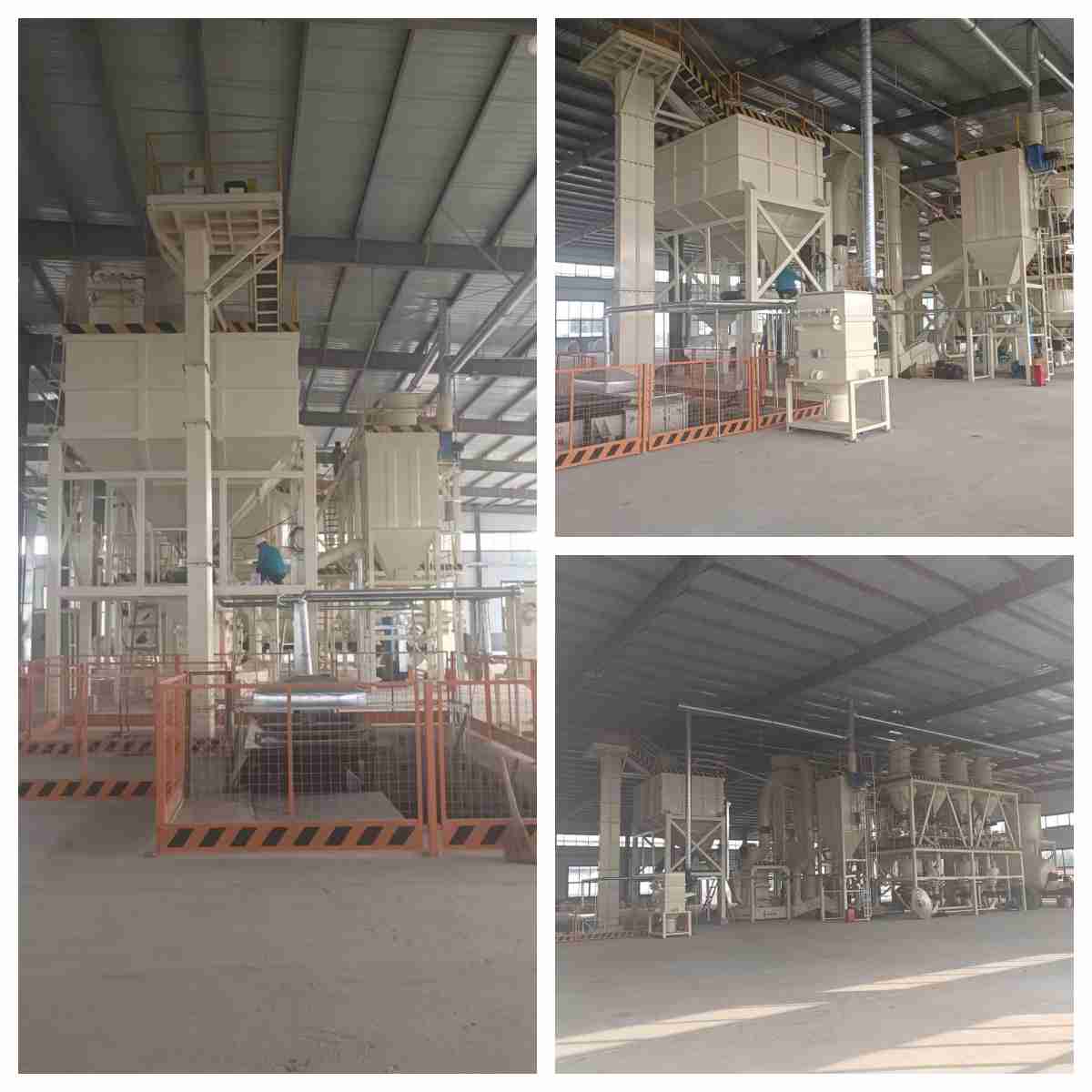

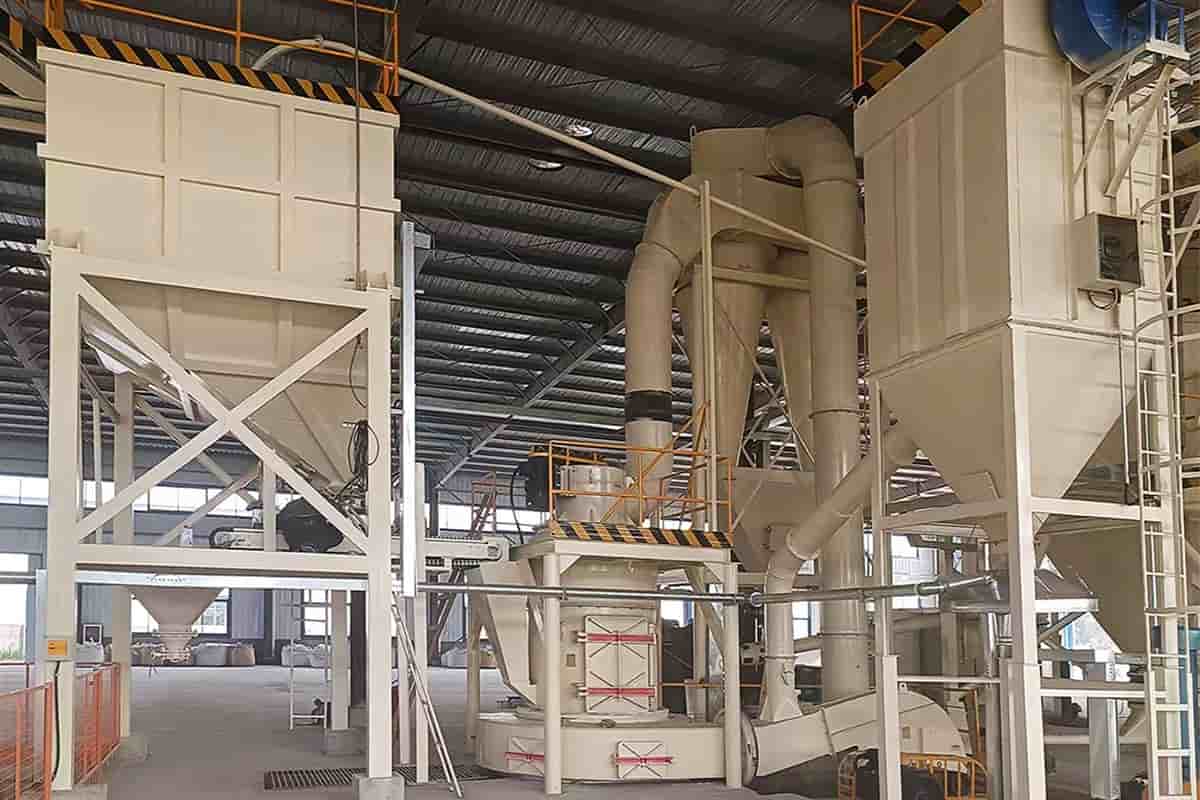

Customer site of integrated sand and powder Raymond Grinding Mill
