Calcium Hydroxide Grinding Mill

Calcium Hydroxide Equipment: An Introduction to the Calcium Hydroxide Grinding Machine

The calcium hydroxide grinding mill consists of multiple components, including the main machine (with a reducer), classifier, disperser, blower, feeder, pipeline system, pulse collector, and electrical control cabinet. It is a highly integrated equipment that combines screening and grinding functions. This design significantly simplifies the production process and enhances operational efficiency. It can accurately perform screening tasks while efficiently conducting grinding operations, playing an indispensable role in the calcium hydroxide production process.

Fineness：80-400 mesh

Capacity：1-15t/h

Application Scenarios: The calcium hydroxide grinding mill is widely used in industries such as food processing, chemical, and pharmaceutical sectors.

Calcium hydroxide equipment: Working principle of calcium hydroxide grinder

When the calcium hydroxide grinding mill is in operation, the digested calcium hydroxide, under the control of the feeder, enters the classifier and then falls into the disperser, where it is evenly dispersed. The classifier screens the material, and the powder that meets the fineness requirements is blown upward by the airflow of the blower to the upper classifier for further screening. The material that meets the fineness standard flows into the cyclone collector and is discharged through the powder outlet pipe as the final product. The material that does not meet the fineness requirements falls into the main grinding chamber for further grinding. Inside the chamber, the grinding rollers and grinding rings work together to strongly pulverize the material. The crushed powder is then blown again by the airflow to the upper classifier for screening, and this process repeats until the material meets the standard.

The purified airflow enters the blower to achieve circulation. Most of the pipeline airflow moves under negative pressure to prevent dust from escaping, and the excess airflow is guided through the vent pipe to the dust collector for purification before being discharged into the atmosphere.

Calcium Hydroxide Equipment: Product Features of the Calcium Hydroxide Grinding Machine

Production efficiency: The unique design of the main machine's inner cavity increases space, reduces wind resistance, shortens the production cycle, and increases output. The large shovel can send the maximum amount of materials into the grinding area between the grinding roller and the grinding ring, improving the working efficiency of the grinding roller and the grinding ring. The high-pressure centrifugal fan increases the air volume and air pressure, improves the material conveying speed and pneumatic conveying capacity, and ensures the efficient operation of the production process.

Fine Classification: The classifier is the core component for precise particle size control. The built-in large-blade cone turbine classifier has a strong screening ability. The classifier rotates at a high speed to generate centrifugal force and an air flow field. Materials are precisely separated within it. Materials that meet the fineness standard enter the cyclone collector and become finished products, while those that do not meet the standard are returned to the main machine cavity for re-grinding. By adjusting parameters such as the rotation speed of the classifier and the angle of the blades, the particle size of the finished product can be flexibly controlled to meet the needs of different industries.

Green and Environmentally Friendly: The exhaust outlet is equipped with a dust collector that boasts a collection efficiency of up to 99%, capable of intercepting almost all dust generated during the production process. When the airflow containing dust passes through the collector, the dust is trapped and adsorbed by the filter material, while the purified gas is discharged. This significantly reduces pollution to the workshop and the surrounding atmospheric environment, meeting environmental protection standards and achieving sustainable development.

Wide Application: In the food processing industry, such as flour production, it can precisely control the grinding fineness to produce flour of different grades, meeting the market demand for food products. In the chemical industry, particularly in the plastics and rubber sectors, the high-quality calcium hydroxide powder produced enhances product performance. The pharmaceutical industry has stringent requirements for product quality and safety. The fine classification function and stable production performance of the grinding machine ensure that the calcium hydroxide powder meets pharmaceutical standards, providing a reliable raw material supply for the production of safe and effective medications.

Calcium Oxide Equipment: Parameter Comparison Table for Calcium Hydroxide Grinding Mill

* The above data is for reference only. For detailed information, please contact Cronus.

The maximum feed size of the host is 20mm. Excessive size may cause equipment blockage. The particle size of the finished product is between 80 - 400 mesh, with a passing rate of 95%, which can meet the needs of most industries. The output is based on the processing of calcium hydroxide. When the water content is less than 2%, the output is greater than 1 - 15t/h, which can meet the production needs of enterprises of different scales. The rotational speed of the central shaft is 112r/min, which affects the rotation speed of the grinding roller and the grinding efficiency. The outer diameter of the grinding ring is Φ1500mm, and the size of the grinding roller is Φ450×280mm, which determines the grinding area and grinding capacity.

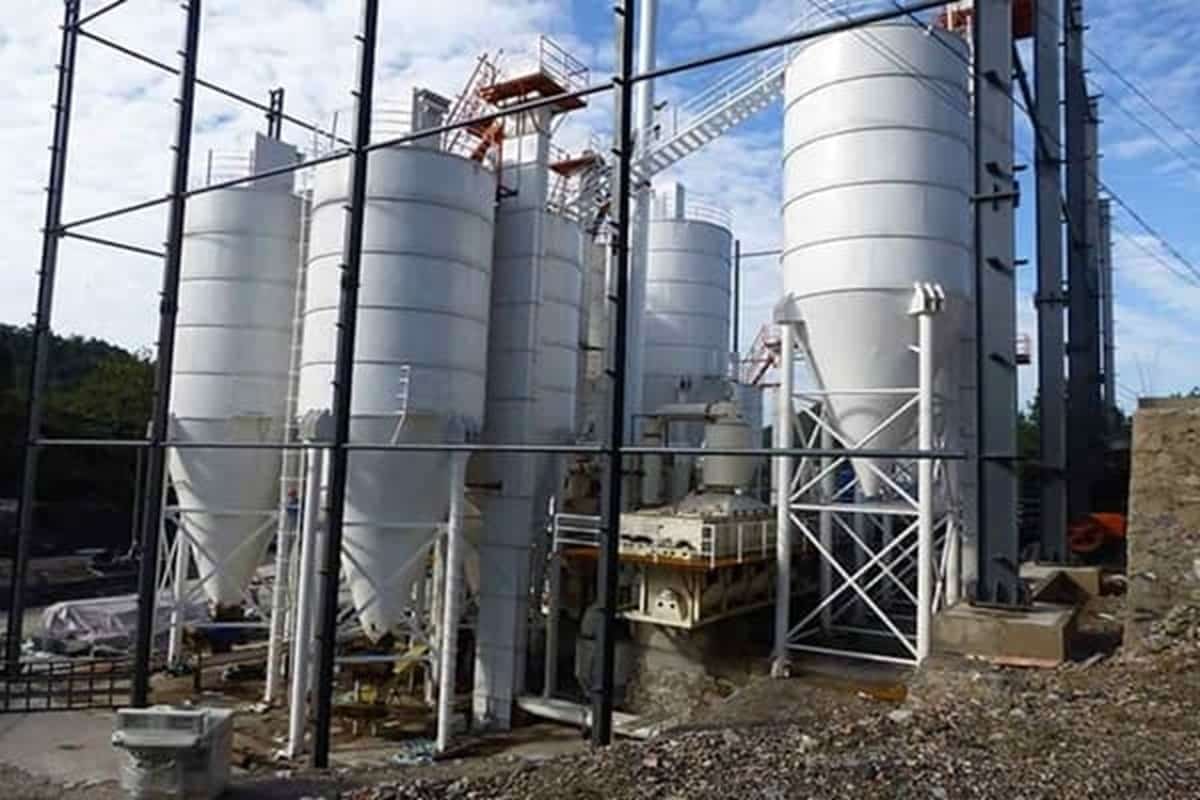

Calcium hydroxide equipment: Customer site of Calcium Hydroxide Grinding Mill
