The manufacturing process of Raymond mill

• Publication time：2025-06-24
• Click：5

Raymond mill raw material preparation

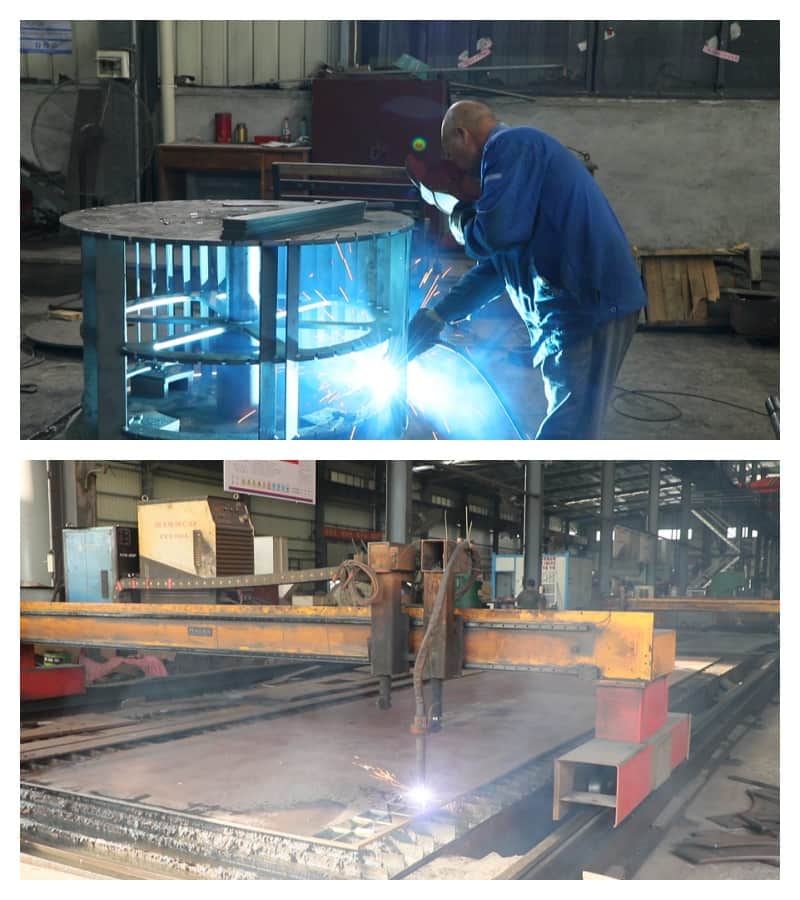

Select high-quality raw materials, such as high-grade steel, wear-resistant alloys, etc., to ensure that the manufactured Raymond mill has high durability and stability. Then carry out cutting, as cutting determines the preliminary shape of the material. Precise cutting can ensure that all parts of the frame can be perfectly spliced, laying the foundation for the subsequent assembly process.

Raymond mill mechanical processing technology

The Raymond mill is exquisitely designed. After preparing high - quality accessories for cutting, it enters the processing stage.

Grinding: It processes the surface of the cut components, removing burrs, oxide layers, etc., to make the surface smooth. This can reduce friction, lower energy consumption, improve efficiency, enhance corrosion resistance, and extend the service life. Tools such as grinders and belt sanders are used. The process and abrasives are selected according to the requirements of the components. Key components such as grinding rollers and grinding rings require high - precision grinding to ensure efficient pulverization.

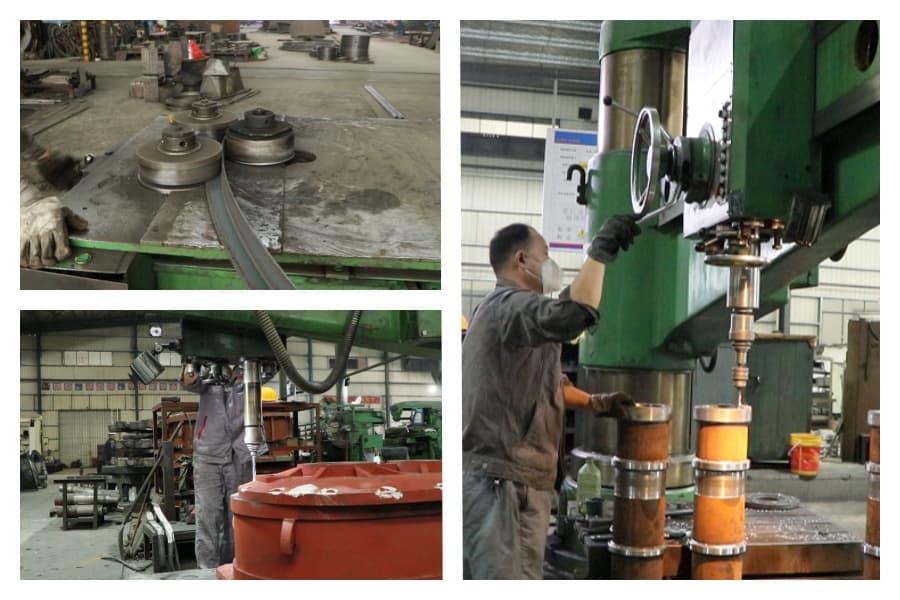

Drilling: It creates connection holes, installation holes, etc., to facilitate the assembly and fixation of components. The accuracy and position accuracy are crucial. CNC machines achieve high - precision drilling through coordinate positioning to ensure that the components are firmly installed and the system operates normally.

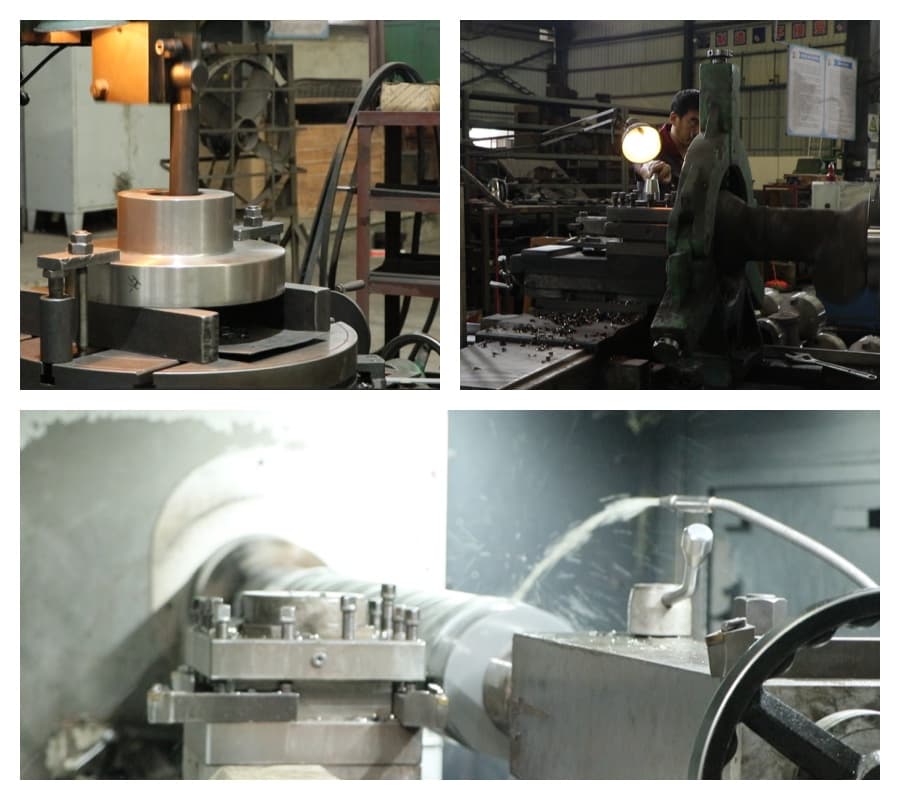

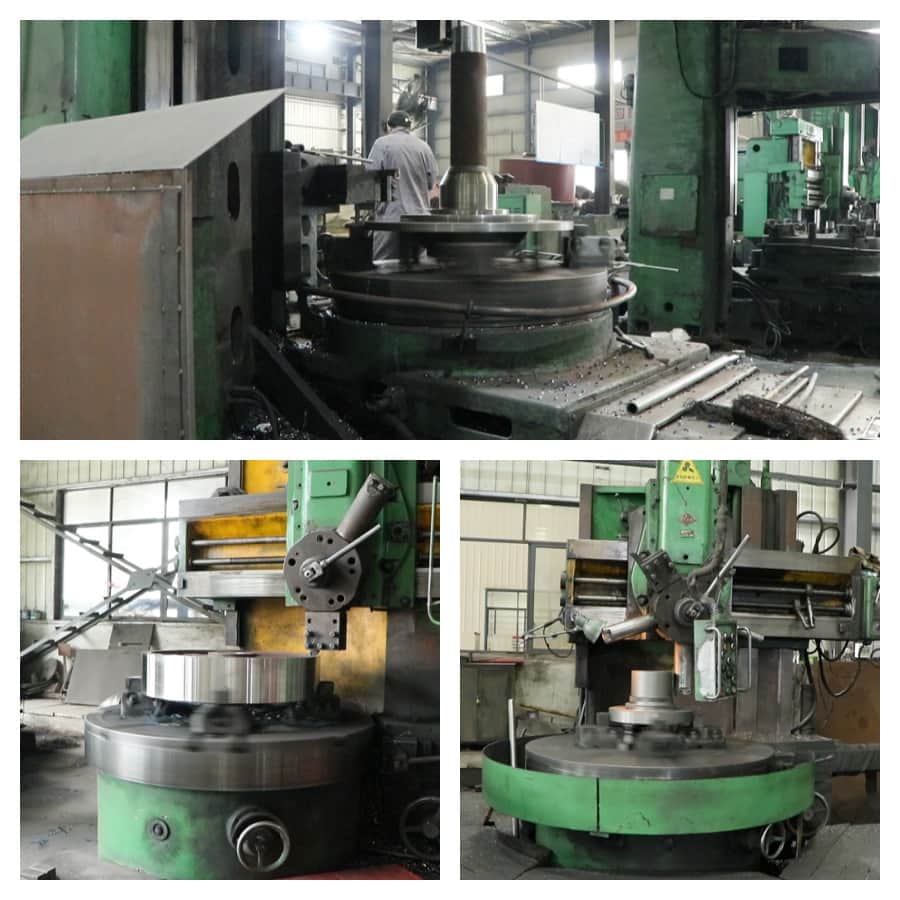

Lathe: It is mainly used for processing rotary parts. The components suitable for turning in the Raymond mill include grinding rollers, grinding rings, main shafts, bearing blocks, etc. To ensure the matching accuracy of the grinding roller and the grinding ring, high concentricity is required during processing.

Milling Machine: It is suitable for processing planes, grooves, etc. The common milled components in the Raymond mill include the base, gears, keyways, connecting flanges, etc. The processing characteristics are mostly for non - rotary structures, and the position accuracy needs to be ensured.

Some accessories require a combination of two processes. For example, for the grinding roller shaft, the outer circle and threads are first processed on a lathe, and then the keyway is milled on a milling machine. For the separator blades, complex curved surfaces may require a milling machine or five - axis machining.

The Foundation Selection for Raymond Mill

After the mechanical processing of the components is completed, start installing the base and foundation of the Raymond mill. The installation of the base and foundation of the Raymond mill is the key to the stable operation of the equipment, directly affecting the equipment vibration, service life, and grinding efficiency.

Foundation site selection: Select a solid and flat ground, avoiding soft soil and subsidence areas. Soft ground can cause the equipment to sink and tilt, exacerbate wear and tear, and directly affect the equipment vibration, service life, and grinding efficiency.

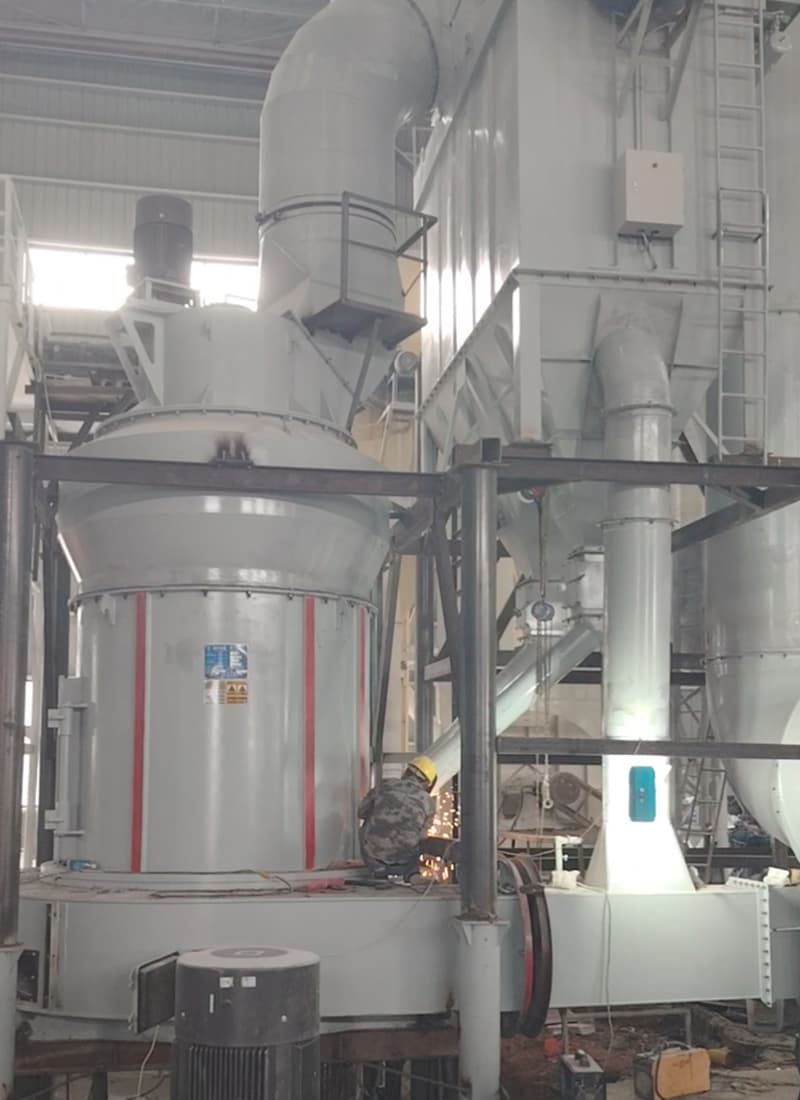

Assembly of Raymond mill components

The main machine of the Raymond mill is the core, integrating components such as the machine frame, air inlet volute, scraper, grinding roller, and grinding ring. During assembly, it is crucial for all components to be closely coordinated. The connection parts need to be accurately positioned and fastened. The installation clearance between the grinding roller and the grinding ring in the main machine needs to be strictly controlled.

The grinding roller and the grinding ring are the most crucial grinding components in the main machine. Their close cooperation is the core to achieve fine grinding of materials.

Debugging and Inspection of Raymond Mill

After assembly is completed, conduct the debugging and inspection of the equipment. This includes checking the operating status of each component, the stability of the transmission system, the reliability of the electrical system, etc. Also, carry out no-load and load tests on the equipment to ensure that it can operate normally under various working conditions. Subsequently, conduct quality inspection, verify the performance parameters, working efficiency and product quality of the equipment to ensure that they meet the design requirements and user needs.

Summary

The manufacturing process of Raymond mill covers aspects such as raw material selection, machining, foundation construction, component assembly, and commissioning inspection. High - quality steel and wear - resistant alloys are selected to ensure durability. Through fine processing, the accuracy and fit of core components are ensured. During assembly, the tight fit and clearance control of the main components affect the grinding efficiency. Finally, strict commissioning and quality inspection are carried out to ensure reliable equipment operation and that the finished products meet the standards.
